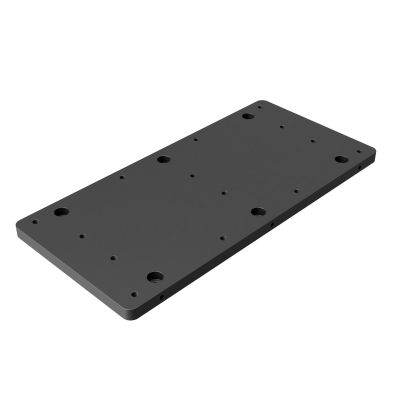

Base Plate for TSO-601M stage

TSO-60BP1

This is a base plate for mounting the high-maneuverability Long Travel Stage (TSO-601M) to a breadboard or surface plate.

It can be mounted on a flat surface (such as a breadboard or surface plate) with M4 screw holes spaced 25mm apart.
With a thickness of 7mm, it eliminates the risk of the handle of the high-maneuverability Long Travel Stage (TSO-601M) interfering with the mounting surface.

Plus d’information
Nom	Base Plate for TSO-601M stage
Poids	0.3500kgs
Guide	The base plate (TSO-60BP1) has M4 countersunk holes as well as M4 screw holes, so it can also be screwed from the bottom. Use the M3 screw holes on the side to attach peripheral components.
Attention	For the High-Maneuverability Long Travel Stage (TSO-601M), first remove the top cover, then secure it to the base plate (TSO-60BP1) with screws.
Primary material	Aluminum
Finish	Black anodized
Size	95×200 mm
Thickness	7 mm

En rupture de stock

SKU

TSO-60BP1

97,50 €
