10W Broadband Thermal Sensor, 25 mJ - 15 J, 10-mm Sensor Aperture, used with PC thru USB Connection
PM10-20D-HP-USB

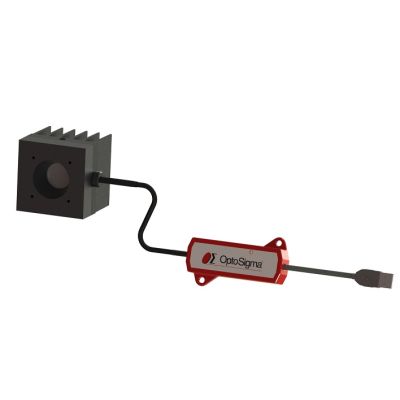

The Opto Sigma PM10-20D-HP-USB is a thermopile sensor designed for measuring power and energy of laser or light sources. It can read power levels up to 10W with 100uW resolution. The PM10-20D-HP-USB operates with a simple connection to a USB port on a standard PC. No additional power supplies or controllers are required. Software to run the sensor is available as a free download. Click download button below.
◦Complete meter less model is very small and performs measurement and analysis with PC.
◦Display connecting model can be used with a lightweight touch screen display in a narrow environment where a PC cannot be installed.
◦Display connecting model can be used with a lightweight touch screen display in a narrow environment where a PC cannot be installed.
| Name | 10W Broadband Thermal Sensor, 25 mJ - 15 J, 10-mm Sensor Aperture, used with PC thru USB Connection |
|---|---|
| Weight | 0.0050kgs |
| Guide | - |
| Attention | - |
| Energy Range | 25 mJ - 15 J |
| Power Range | 10 mW - 10 W |
| Wavelength Range | 0.19 - 11µm |
| Aperture | 12mm |
| Cooling | Convection |
| Max Intermittent Power | 15W |
| Power Resolution | 100uW |
| Noise Equivalent Power (NEP) | 600uW |
| Response Time (0-90%) | 1s |
| Power Calibration Uncertainty | +/-3% |
| Power Linearity | +/-1% |
| Energy Resolution | 100uJ |
| Energy Calibration Uncertainty | +/-5% |
| Type of Absorber | HPB |
| Maximum Power Density | 18kW/cm2 |
| Max Energy Density | 5ms pulse width: 36 J/cm2, 10us pulse width: 1.2 J/cm2, 10ns pulse width: 0.3 J/cm2 |
| Interface | USB |
In stock
SKU
PM10-20D-HP-USB
$1,738.00
Customize product
The Opto Sigma PM10-20D-HP-USB is a thermopile sensor designed for measuring power and energy of laser or light sources. It can read power levels up to 10W with 100uW resolution. The PM10-20D-HP-USB operates with a simple connection to a USB port on a standard PC. No additional power supplies or controllers are required. Software to run the sensor is available as a free download. Click download button below.
