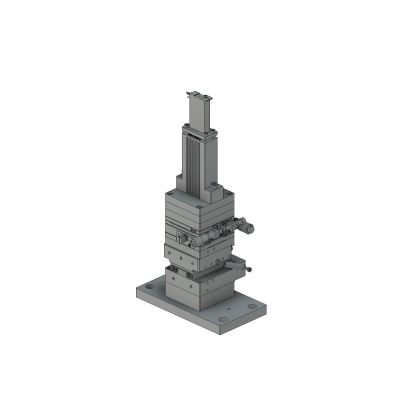

Centering Unit with Temperature Control and Horizontal Contact Sensor – 10 × 10 mm
CEUT-HTEC-10
This unit is used to set or fix a sample such as waveguides.
Samples such as waveguides can be fixed by adsorption or mechanical clamping.
Two types of sample sizes are available: 5mm x 5mm and 10mm x 10mm. The sample position and angle can be adjusted by 2-axis manual stage.
We also have options available that have a temperature control for a sample or a contact sensor for a sample and a fiber array.You can select the most appropriat type for your application.
Two types of sample sizes are available: 5mm x 5mm and 10mm x 10mm. The sample position and angle can be adjusted by 2-axis manual stage.
We also have options available that have a temperature control for a sample or a contact sensor for a sample and a fiber array.You can select the most appropriat type for your application.
| Stage Part | ||
|---|---|---|
| Axis | X axis | θy axis |
| Component Products/Products Type | TADC-601SR | KSPT-606MRH |
| Travel | ±6.5mm | ±10° |
| Lead of Actuator | 0.5mm | - |
| Micrometer Readable Resolution | 0.01mm | - |
| Sample Holder Part | |
|---|---|
| Sample size *1 | 10mm×10mm |
| Load cell | Included (horizontal direction) |
| Load cell part number *2 | LMA-A-10N (KYOWA ELECTRONIC INSTRUMENTS CO., LTD.) |
| Load cell amplifier part number *2 | TW-3S-002 (Watanabe Electric Industry Co. Ltd.) |
| Contact sensing minimum resolution | 0.25N |
| Temperature control unit | Included |
| Temperature control range *3 | 10℃ - 60℃ |
| Peltier Element | Imax:8.5A Vmax:4.4V |
| Thermistor Sensors | 103AT-4(10kΩ)(SEMITEC Corporation.) |
| Accessory |
|---|
| Vacuum suction tube (2m) |
| Connection cable to temperature controller *4 |
