Miroirs diélectriques à large bande, en silice fondue et grand angle

TFVMQ

En stock

SKU

TFVMQ

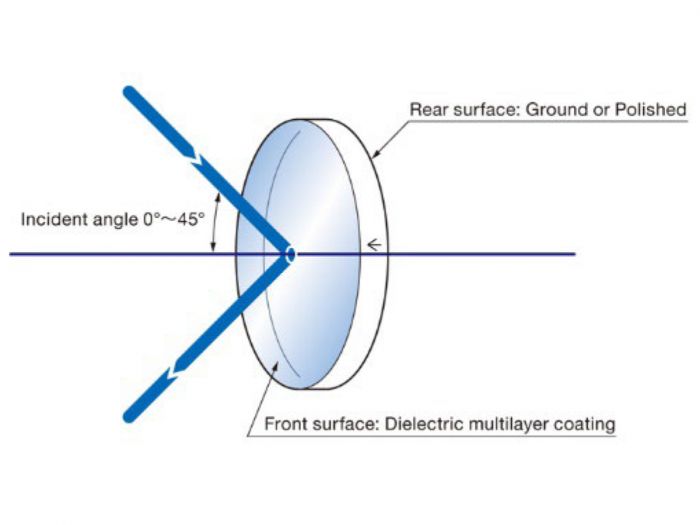

Ce miroir à haute réflectivité couvre une large gamme de longueurs d'onde dans le visible, l'UV et l'IR, et peut être utilisé pour n'importe quel angle d'incidence entre 0° et 45°. Ces miroirs sont couramment utilisés dans la plage d'angle d'incidence de 0° à 45°, ce qui les rend très polyvalents pour une utilisation dans des lasers multi-longueurs d'onde ou des expériences spectroscopiques.

Ajouter à ma liste d’envie

Customize product

Filtres

Enabled filters :

Remove all filters

Nom Diameter φD Material Reflectance Wavelength Range Delivery Prix Add to cart

12.7mm Broadband Mirror, 350-450nm, 99% Avg. Reflectivity, Fused Silica, 5mm Thk
TFVMQ-12.7C05-3/4

12.7mm

Synthetic fused silica

＞99%

350 - 450nm

in stock

79,00 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	<3'
Surface Quality (Scratch-Dig)	20-10
Clear aperture	90% of the diameter
Wavelength Range	350-450nm
Diameter φD	φ12.7mm
Thickness t	5mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	0.5J/cm²

12.7mm Broadband Mirror, 400-750nm, 99% Avg. Reflectivity, Fused Silica, 5mm Thk
TFVMQ-12.7C05-4/7

12.7mm

Synthetic fused silica

＞99%

400 - 750nm

in stock

71,70 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	3'
Surface Quality (Scratch-Dig)	20-10
Clear aperture	90% of the diameter
Wavelength Range	400-750nm
Diameter φD	φ12.7mm
Thickness t	5mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	0.5J/cm²

12.7mm Broadband Mirror, 700-1100nm, 99% Avg. Reflectivity, Fused Silica, 5mm Thk
TFVMQ-12.7C05-7/11

12.7mm

Synthetic fused silica

＞99%

700 - 1100nm

in stock

71,70 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	3'
Surface Quality (Scratch-Dig)	40-20
Clear aperture	90% of the diameter
Wavelength Range	700-1100nm
Diameter φD	φ12.7mm
Thickness t	5mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	1.0J/cm²

12.7mm Broadband Mirror, 1000-1600nm, 99% Avg. Reflectivity, Fused Silica, 5mm Thk
TFVMQ-12.7C05-10/16

12.7mm

Synthetic fused silica

＞99%

1000 - 1600nm

in stock

79,00 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	3'
Surface Quality (Scratch-Dig)	40-20
Clear aperture	90% of the diameter
Wavelength Range	1000-1600nm
Diameter φD	φ12.7mm
Thickness t	5mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	2.5J/cm²

25.4mm Broadband Mirror, 350-450nm, 99% Avg. Reflectivity, Fused Silica, 5mm Thk
TFVMQ-25.4C05-3/4

25.4mm

Synthetic fused silica

＞99%

350 - 450nm

in stock

89,80 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	3'
Surface Quality (Scratch-Dig)	20-10
Clear aperture	90% of the diameter
Wavelength Range	350-450nm
Diameter φD	φ25.4mm
Thickness t	5mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	0.5J/cm²

25.4mm Broadband Mirror, 400-750nm, 99% Avg. Reflectivity, Fused Silica, 5mm Thk
TFVMQ-25.4C05-4/7

25.4mm

Synthetic fused silica

＞99%

400 - 750nm

in stock

86,20 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	3'
Surface Quality (Scratch-Dig)	20-10
Clear aperture	90% of the diameter
Wavelength Range	400-750nm
Diameter φD	φ25.4mm
Thickness t	5mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	0.5J/cm²

25.4mm Broadband Mirror, 700-1100nm, 99% Avg. Reflectivity, Fused Silica, 5mm Thk
TFVMQ-25.4C05-7/11

25.4mm

Synthetic fused silica

＞99%

700 - 1100nm

in stock

86,20 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	3'
Surface Quality (Scratch-Dig)	40-20
Clear aperture	90% of the diameter
Wavelength Range	700-1100nm
Diameter φD	φ25.4mm
Thickness t	5mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	1.0J/cm²

25.4mm Broadband Mirror, 1000-1600nm, 99% Avg. Reflectivity, Fused Silica, 5mm Thk
TFVMQ-25.4C05-10/16

25.4mm

Synthetic fused silica

＞99%

1000 - 1600nm

in stock

89,80 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	3'
Surface Quality (Scratch-Dig)	40-20
Clear aperture	90% of the diameter
Wavelength Range	1000-1600nm
Diameter φD	φ25.4mm
Thickness t	5mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	2.5J/cm²

50.8mm Broadband Mirror, 350-450nm, 99% Avg. Reflectivity, Fused Silica, 8mm Thk
TFVMQ-50.8C08-3/4

50.8mm

Synthetic fused silica

＞99%

350 - 450nm

in stock

179,50 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	3'
Surface Quality (Scratch-Dig)	20-10
Clear aperture	90% of the diameter
Wavelength Range	350-450nm
Diameter φD	φ50.8mm
Thickness t	8mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	0.5J/cm²

50.8mm Broadband Mirror, 400-750nm, 99% Avg. Reflectivity, Fused Silica, 8mm Thk
TFVMQ-50.8C08-4/7

50.8mm

Synthetic fused silica

＞99%

400 - 750nm

6-12 weeks

175,10 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	3'
Surface Quality (Scratch-Dig)	20-10
Clear aperture	90% of the diameter
Wavelength Range	400-750nm
Diameter φD	φ50.8mm
Thickness t	8mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	0.5J/cm²

50.8mm Broadband Mirror, 700-1100nm, 99% Avg. Reflectivity, Fused Silica, 8mm Thk
TFVMQ-50.8C08-7/11

50.8mm

Synthetic fused silica

＞99%

700 - 1100nm

in stock

175,10 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	3'
Surface Quality (Scratch-Dig)	40-20
Clear aperture	90% of the diameter
Wavelength Range	700-1100nm
Diameter φD	φ50.8mm
Thickness t	8mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	1.0J/cm²

50.8mm Broadband Mirror, 1000-1600nm, 99% Avg. Reflectivity, Fused Silica, 8mm Thk
TFVMQ-50.8C08-10/16

50.8mm

Synthetic fused silica

＞99%

1000 - 1600nm

in stock

179,50 €

Material	Fused Silica
Coating	Dielectric multi-layer coating
Incident angle	0~45°
Surface flatness	λ/10
Parallelism	3'
Surface Quality (Scratch-Dig)	40-20
Clear aperture	90% of the diameter
Wavelength Range	1000-1600nm
Diameter φD	φ50.8mm
Thickness t	8mm
Reflectance	Rave.＞99%
Laser Damage Threshold<sup>*</sup>	2.5J/cm²

You must be logged in to ask questions

Une réflectivité très élevée peut être obtenue entre 0 et 45 degrés d'angle d'incidence. Ces miroirs offrent une réflectance élevée avec une variation limitée sur une large gamme de longueurs d'onde. Le revêtement multicouche diélectrique rend la surface du miroir très résistante aux rayures et permet un essuyage pour le nettoyage. Il n'y a pas d'absorption du revêtement, une détérioration limitée dans le temps et une excellente résistance à l'irradiation laser continue.
