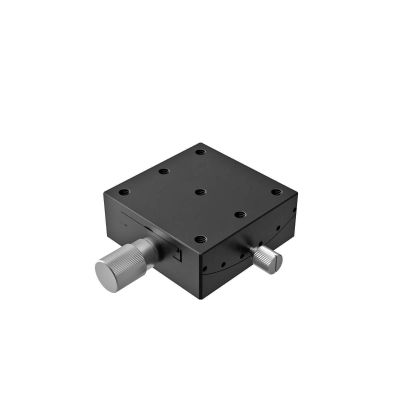

65X65mm Goniometer, Brass Dovetail, 1-Axis, +/-20 deg, 50mm Axis Ht, Worm-gear, M6 Thd
GOH-65A50-M6
×
Goniometers with dovetail slide and worm gear construction for angular adjustment of heavy loads.
| Name | 65X65mm Goniometer, Brass Dovetail, 1-Axis, +/-20 deg, 50mm Axis Ht, Worm-gear, M6 Thd |
|---|---|
| Weight | 0.8800kgs |
| Guide | - |
| Attention |
|
| Image Label | α Axis Goniometers −M6− |
| Stage Size | 65×65mm |
| Angle Range | ±20° |
| Load Capacity | 98N (10.0kg) |
| Rotation Center Height | 50±0.1mm |
| Angle Range | ±20° |
| Vernier Readable Resolution | 5′ |
| Travel per Knob Rotation | about 1.16° |
| Rotation Center Displacement | φ0.1mm or less |
In stock
SKU
GOH-65A50-M6
$687.00
Customize product
Goniometers with dovetail slide and worm gear construction for angular adjustment of heavy loads.
