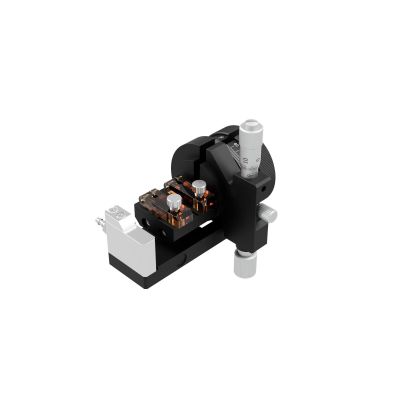

Rotating Fiber Holder with Coarse/Fine Adjustment – Ø125–400 µm – Right (with suction)
FHRSW-125/400R
Rotating fiber holder with coarse/fine adjustment to rotate and align the polarization plane of polarization-maintaining fibers. It is used by attaching it to the holder mounting section of the alignment unit.
The plastic pushers have built-in magnetizing set bolts, gently clamps the polarization-maintaining fiber by the magnetic force of the fiber holder's magnets.
Attachment to the fiber alignment unit is a one-touch operation using magnets for easy connection and disconnection.
Can be attached to the DAU series fiber alignment unit.
Name | Rotating Fiber Holder with Coarse/Fine Adjustment – Ø125–400 µm – Right (with suction) |
---|---|
Gewicht | 0.2000kgs |
Leitfaden | We have two types of fiber holders: the FHRSW series with a suction function at the tip and the FHRS series without a suction function. We also have three jacket diameters of 250 μm, 400 μm, and 900 μm. All cladding diameters are specified at 125 μm. |
Achtung | When removing the fiber retention unit, please do so at the 0 degree position. A vacuum pump is also required to use the adsorption mechanism. Please contact our sales department for information on vacuum pump peripheral equipment. |
Fiber optic cladding diameter | 125μm |
Fiber optic jacket diameter | 400μm |
Travel | Coarse: 360°, Fine: ±5° |
Fine Resolution | 0.026°/DIV |
Material / Finish | Aluminum / Black anodized |
Auf Lager
SKU
FHRSW-125/400R
1.188,00 €
