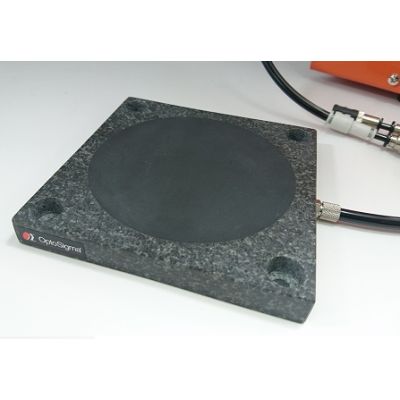

Porous Vacuum Table 42×42mm
PVT40-25.4
PVT has uniform micrometers vent hole and can adsorb a sample reducing warp or deflection of the sample. PVT is suitable to fix a thin substrate such as semiconductor, glass, film or sheet.
◦PVT is made of granite and is lightweight and precise configuration.
◦External vacuum source is required. Adsorption power depends on the vacuum source.
◦External vacuum source is required. Adsorption power depends on the vacuum source.
| Name | Porous Vacuum Table 42×42mm |
|---|---|
| Gewicht | 0.1000kgs |
| Leitfaden |
|
| Achtung |
|
| Dimensions | 42x42mm |
| Height | 15mm |
| Applicable sample size | φ26mm |
| Flatness | 0.005mm |
| Size of the vent hole | 2μm |
| Applicable tube inner diameter | φ4mm |
Auf Lager
SKU
PVT40-25.4
1.282,30 €
Customize product
PVT has uniform micrometers vent hole and can adsorb a sample reducing warp or deflection of the sample. PVT is suitable to fix a thin substrate such as semiconductor, glass, film or sheet.
