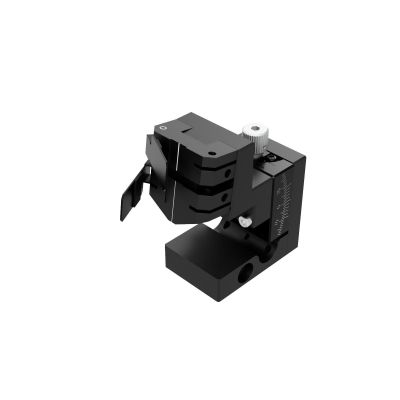

Fiber Holder for Grating Coupler – Ø125–250 µm – Right
FHMF-125/250R-GC8
Fiber holder for grating coupler.
Attached to the holder mounting table of the fiber alignment unit.
Various fiber holders can be vertically positioned for use in core alignment of grating fiber couplers. Available for bare fiber and fiber arrays.
The angle can be adjusted in the range of 0° to 18° with a preset angle of 8°.
Attachment to the fiber alignment unit is a one-touch operation using magnets for easy connection and disconnection.
Can be attached to the DAU series fiber alignment unit.
| Name | Fiber Holder for Grating Coupler – Ø125–250 µm – Right |
|---|---|
| Gewicht | 0.1200kgs |
| Leitfaden | Array holders are also available for grating couplers. We also have three jacket diameters of 250 μm, 400 μm, and 900 μm. All cladding diameters are specified at 125 μm. |
| Fiber optic cladding diameter | 125μm |
| Fiber optic jacket diameter | 250μm |
| Preset angle | 8° |
| Adjustment Range | 0～18° |
| Material / Finish | Aluminum / Black anodized |
Auf Lager
SKU
FHMF-125/250R-GC8
770,00 €
