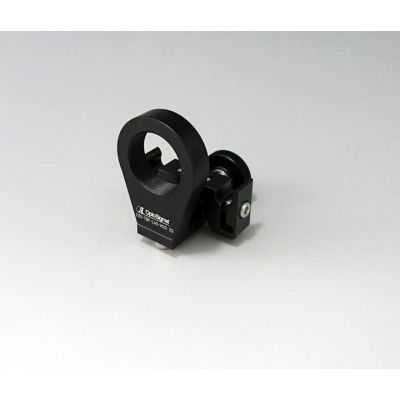

Cage Objective Lens Focus Mount

C30-TBP-LHO-M20.32

This is the stage for installing the objective lens in the cage system and adjusting the focus.

◦ Objective lens focus mount are supported by two rods (cages)

More Information
Name	Cage Objective Lens Focus Mount
Weight	0.0400kgs
Guide	Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog. For consultation of optical system using cage system please contact Sales.
Attention	If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders. Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder. When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Image Label	Cage Objective Lens Focus Mount
Primary material	Aluminum
Guide Rod Diameter (Spaceing between rod)	φ6mm (30x30mm)
Compatible Mounting Screw Size	M20.32 P0.706
Adjustment Range	±5mm
Resolution	0.5mm/rotation

In stock

SKU

C30-TBP-LHO-M20.32

$232.00

This is the stage for installing the objective lens in the cage system and adjusting the focus.
