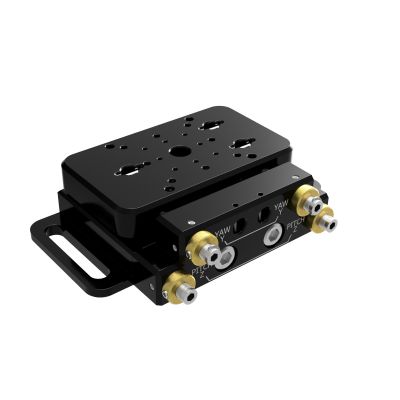

50X85mm Platform, Y-Z-Pitch-Yaw Kinematic Alignment Stage with Locks, Aluminum, M2, M3, M4 Threads

TLF-5085

TLF Four-Axis Alignment Stages have both linear and angular adjustments for the alignment of one optical axis to another. Simultaneous operation of both left and right axes performs linear motion (Z-axis, Y-axis), and single-axis operation performs tilt (Pitch, Yaw) adjustment. Each fine adjustment screw is equipped with a locking mechanism. The top platform has M2, M3, and M4 tapped holes for mounting our standard linear and rotation stages. They are ideal for the alignment of laser light sources, beam expanders, etc. The base hole pattern allows mounting on M6 (metric) and 1/4-20 (inch) type surface plates, optical table tops, and rod stands.

Weitere Informationen

Weitere Informationen
Name	50X85mm Platform, Y-Z-Pitch-Yaw Kinematic Alignment Stage with Locks, Aluminum, M2, M3, M4 Threads
Gewicht	0.4700kgs
Leitfaden	Use a 2mm wrench for the TLF-4060 and a 3mm wrench for the TLF-5085 to operate the fine adjustment screw. TLF-5085 can remove the fine adjustment screw and replace it with PDM Series Piezomotor Adjusters etc. If you wish to change to PDM, please contact our sales department.
Achtung	Please load only right-side up on a horizontal surface because the kinematic support structure can not be used upside down. Neither Allen wrench nor knob hex wrench is included.
Stage Platform Size	50x85mm
Nominal Platform Height Above Mountng Surface	30mm
Pitch Angle Range	+/-4.5 deg
Yaw Angle Range	+/-2.4 deg
Y-Axis Travel Range	+/-2.0mm
Z-Axis (vertical) Travel Range	+/-1.5mm
Primary Material	Aluminum
Finish	Black anodized
Load Capacity	20N

Auf Lager

SKU

TLF-5085

813,40 €
