Three-Axis, Triangulating Laser Autocollimator

SH-AC

Nicht lieferbar

SKU

SH-AC

This triangulating laser autocollimator system features the ability to measure axial, linear diaplacement in addition to pitch & yaw angular measurements. Typically, a mirror would be mounted to the object of interest. The linear displacement measurement direction is axial at +/-5mm, along the beam path. The autocollimator head has a built-in electronic processing unit allowing for easier setup owing to fewer cable connections. A user-supplied computer is needed to run the system.

Zur Wunschliste hinzufügen

Customize product

Filter

Enabled filters :

Remove all filters

Name

Beam Diameter

Delivery

Preis

Add to cart

details

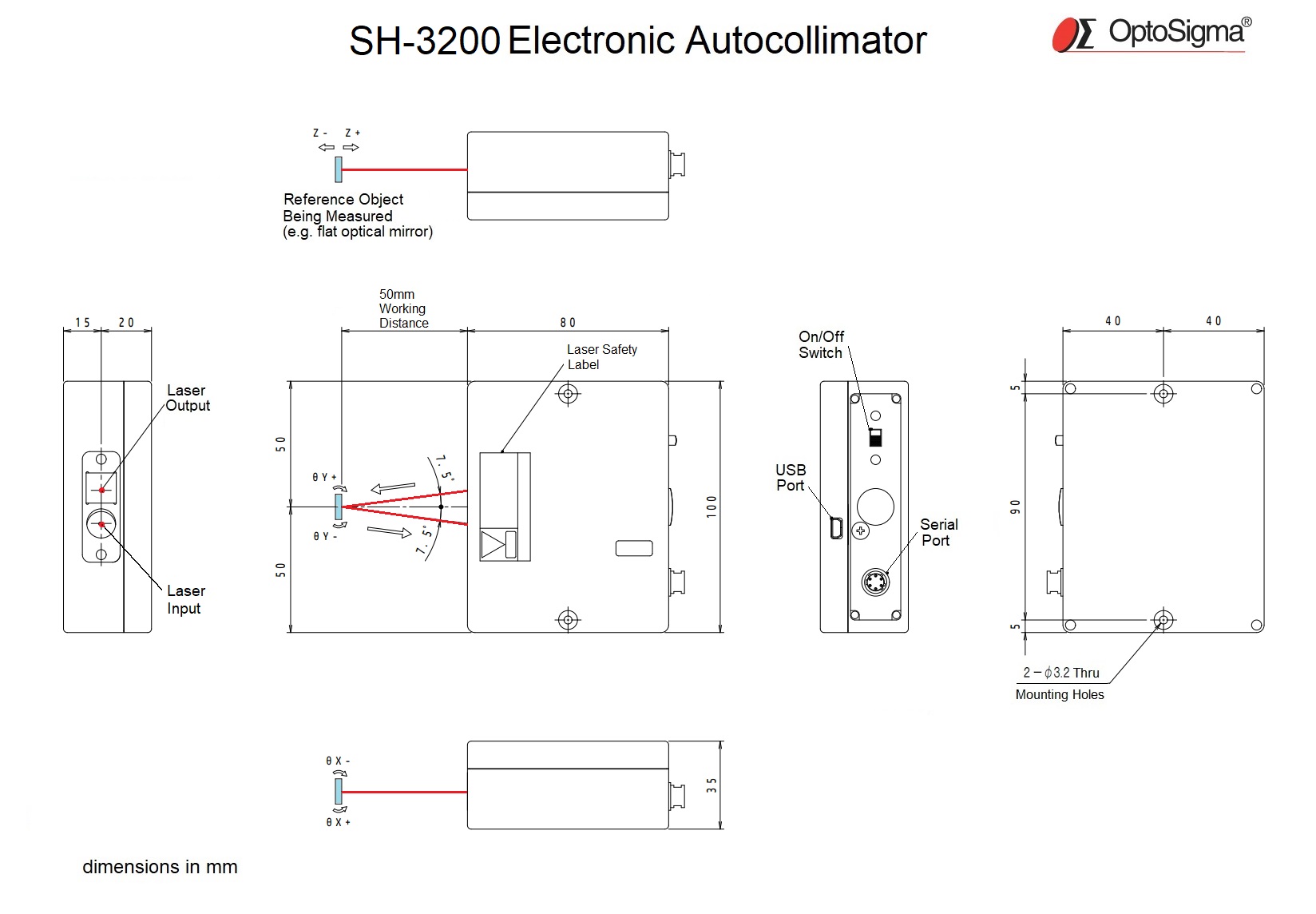

SH-3200

1mm

6-12 weeks

kontaktiere uns

Measurement	Three-Axis, Non-Contact, Angular (Pitch and Yaw) and Linear (Optical Axis)
Method	Autocollimation and Triangulation with Lateral-Effects Detector
Readout Resolution	0.01' (Arc Minute) or 0.6" (Arc Second), or about 3 urad
Angular Range	+/-90' Circular
Linear Range	+/-5mm
Working Distance Range	50+/-0.5mm
Repeatability	0.5" (Arc Second), 0.5um at 50mm working distance
Linearity	+/-0.2% angular, +/-0.1% linear
Autocollimator Laser Wavelength	660nm (1mW max, Class 2)
Minimum Reflectivity Requirement for Mirror	80% Specular @660nm
Laser Beam Diameter	0.2mm (1/e2)
Measurement Frequency	1.0kHz
Contents of Box	Autocollimator Head, RS-232C Cable, AC power adapter, USB mini B Cable (1M), Ground wires, Manuals and software
Additional Required Items (Sold Separately)	Computer, Windows 10, 64 Bit (customer supplied)

You must be logged in to ask questions

Common applications include calibrating goniometers, aligning optical components in laser systems, verifying the straightness or squareness of mechanical assemblies, and measuring small angular displacements in vibration or deformation testing. Their non-contact nature makes them ideal for delicate or high-precision setups.
